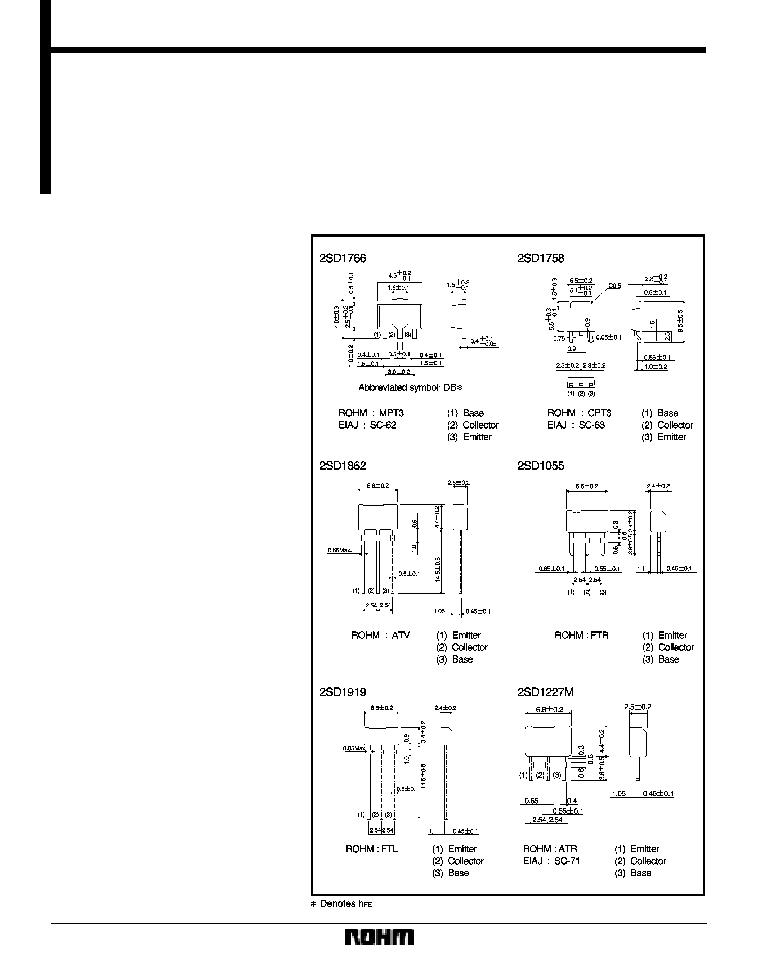

External dimensions (Units: mm)
256
Transistors
Medium Power Transistor (32V, 2A)
2SD1766 / 2SD1758 / 2SD1862 / 2SD1055 /
2SD1919 / 2SD1227M
F
Features
1) Low V
CE(sat)
.
V
CE(sat)
= 0.5V (Typ.)
(I
C
/ I
B
= 2A / 0.2A)
2) Complements the
2SB1188 / 2SB1182 / 2SB1240 /
2SB891F / 2SB822 / 2SB1277 /
2SB911M
F
Structure
Epitaxial planar type
NPN silicon transistor
257
Transistors
2SD1766 / 2SD1758 / 2SD1862 / 2SD1055 /
Transistors
2SD1919 / 2SD1227M
F

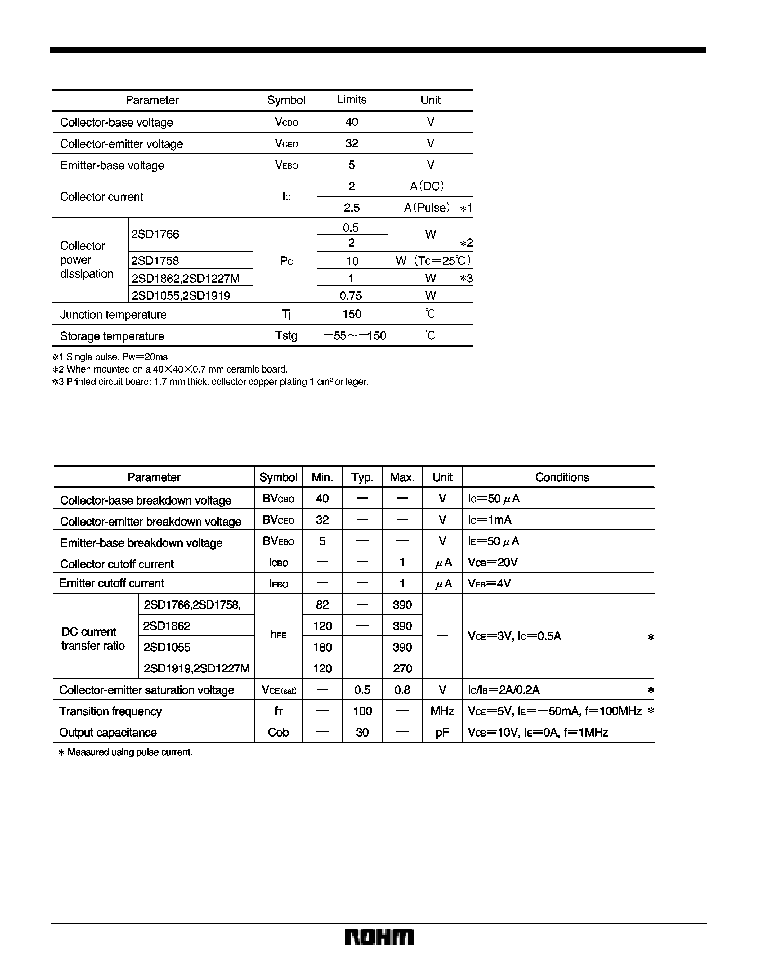

Absolute maximum ratings (Ta = 25
_
C)
F
Electrical characteristics (Ta = 25
_
C)
258
Transistors
2SD1766 / 2SD1758 / 2SD1862 / 2SD1055 /
Transistors
2SD1919 / 2SD1227M
F

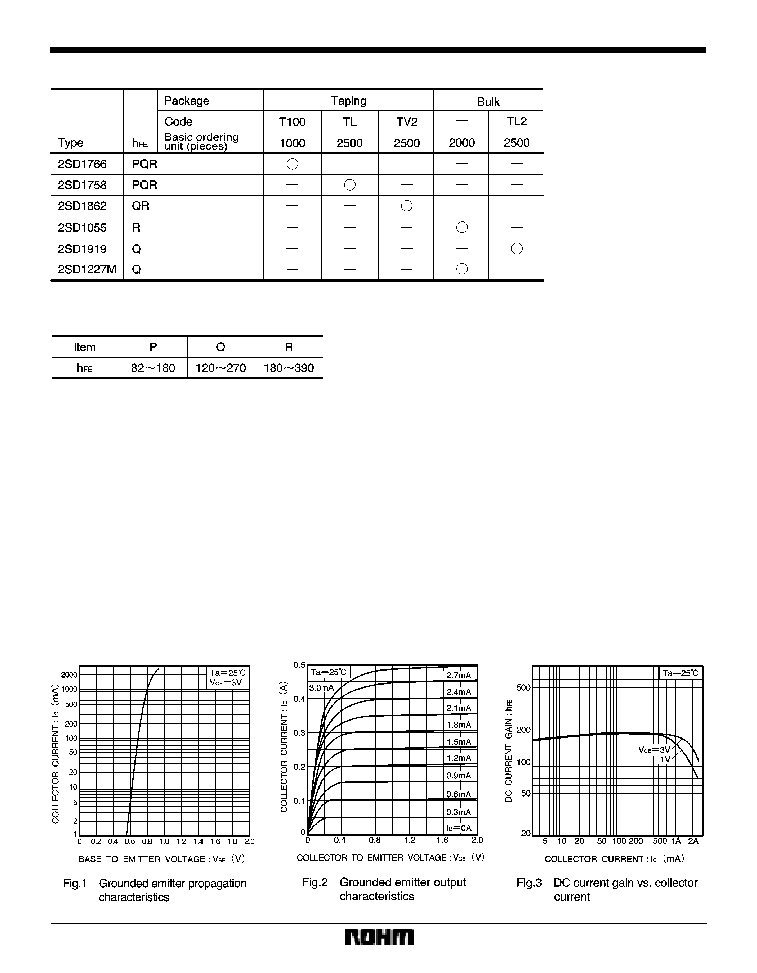

Packaging specifications and h
FE
h
FE
values are classified as follows :
F

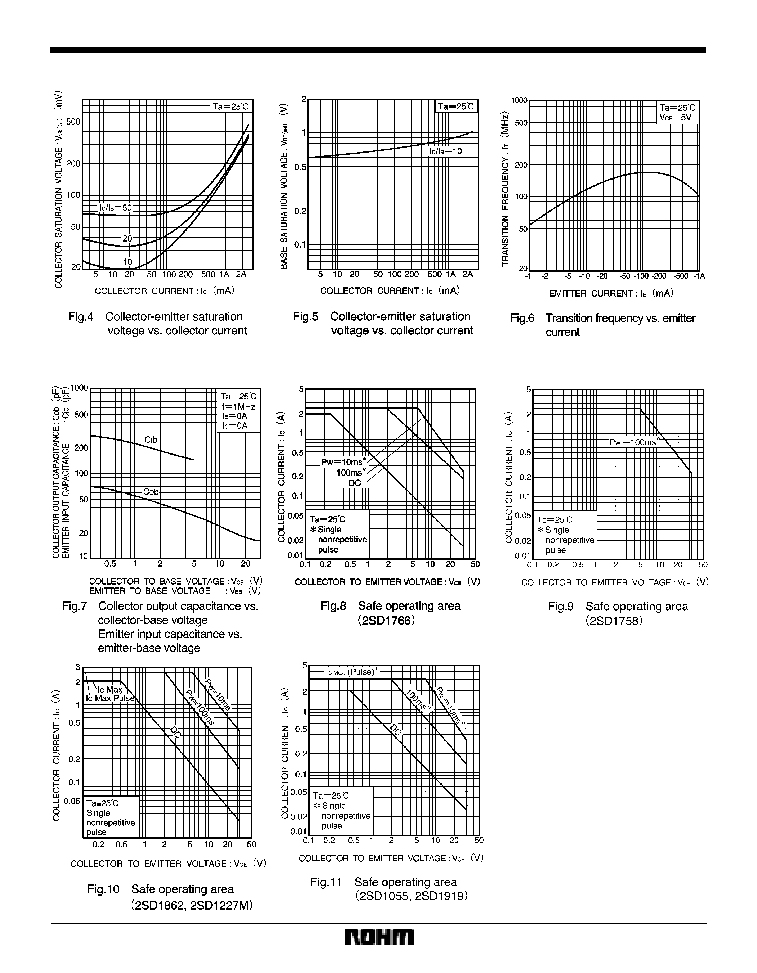

Electrical characteristic curves
PDF
